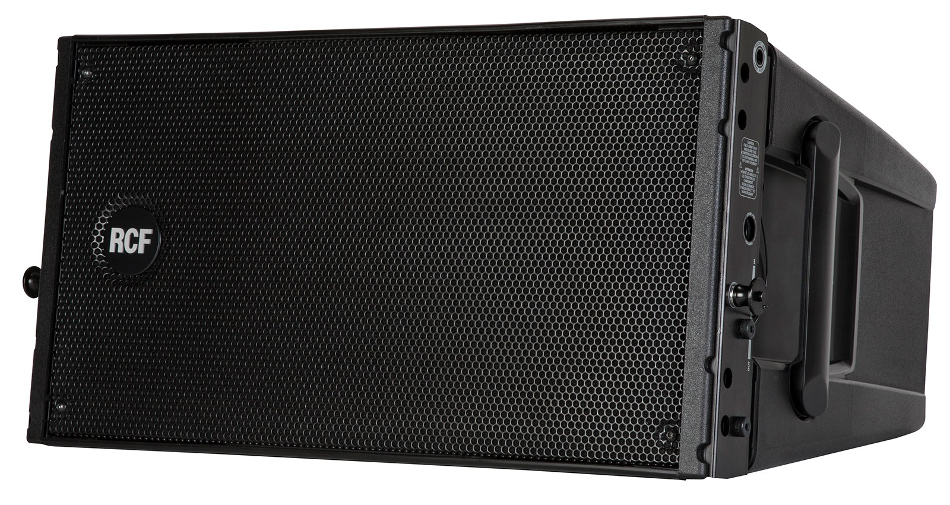

Active Line Array Loudspeaker

The very compact size, no compromise transducers and a unique composite cabinet design make the RCF HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

• 1400 Watt Peak power - 700 Watt RMS
• 133 dB max SPL
• 65 Hz 20 kHz frequency response
• 2 x 8" Woofers
• 1 x 2" Compression Driver
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics
• Composite PP enclosure structurally wooden reinforced

• Color: Black
• Frequency Response: 65 Hz 20000 Hz
• MAX SPL @ 1M: 133 dB
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 15° Transducers
• Compression Driver: 2.0", 2.5" v.c
• Woofer: 2 x 8", 2.0" v.cInput & Output section
• Input Signal: bal & unbal
• Input Connectors: XLR
• Output Connectors: XLR
• Crossover Frequencies: 800 Hz
• Protections: Thermal, RMS
• Depth: 17.09"
• Width: 22.4"
• Height: 11.57"
• Weight: 51 lbs
